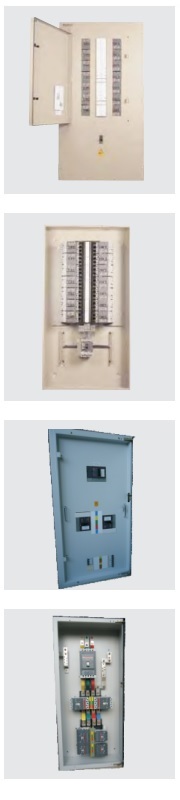

250A Panelboard/630A Panelboard
Technical specification
■ Powerpact 3 panelboard has been designed and tested to IEC 439-1 and EN 60439-1■ Enclosure is IP 40 to EN 60529
■ MCCBs comply with IEC 947-2 and EN 60497-2
■ Switch-disconnectors comply with IEC 947-3 and EN 60947-3
MCCB Enclosure with Main Switch Space| Type No. | Dimensions(mm) | Specification | Rated Current(A) |
| H×W×D | |||
| BS-S-IN250-204/S | 935×600×210 | 4 Way | 250A |
| BS-S-IN250-206/S | 1040×600×210 | 6 Way | 250A |
| BS-S-IN250-208/S | 1145×600×210 | 6 Way | 250A |
| BS-S-IN250-210/S | 1250×600×210 | 10 Way | 250A |
| BS-S-IN250-212/S | 1355×600×210 | 12 Way | 250A |
| BS-S-IN250-214/S | 1460×600×210 | 14 Way | 250A |
| BS-S-IN400-404/S | 1000×600×210 | 4 Way | 400A |
| BS-S-IN400-406/S | 1105×600×210 | 6 Way | 400A |
| BS-S-IN400-408/S | 1210×600×210 | 8 Way | 400A |
| BS-S-IN400-410/S | 1315×600×210 | 10 Way | 400A |
| BS-S-IN400-412/S | 1420×600×210 | 12 Way | 400A |
| BS-S-IN400-414/S | 1525×600×210 | 14 Way | 400A |
| BS-S-IN630-604/S | 1050×600×210 | 4 Way | 630A |
| BS-S-IN630-606/S | 1155×600×210 | 6 Way | 630A |
| BS-S-IN630-608/S | 1260×600×210 | 8 Way | 630A |
| BS-S-IN630-610/S | 1365×600×210 | 10 Way | 630A |
| BS-S-IN630-612/S | 1470×600×210 | 12 Way | 630A |
| BS-S-IN630-614/S | 1575×600×210 | 14 Way | 630A |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
MCCB Enclosure without Main Switch Space
| Type No. | Dimensions(mm) | Specification | Rated Current(A) |
| H×W×D | |||
| BS-S-CL-204/S | 935×600×210 | 4 Way | 250A |
| BS-S-CL-206/S | 1040×600×210 | 6 Way | 250A |
| BS-S-CL-208/S | 1145×600×210 | 6 Way | 250A |
| BS-S-CL-210/S | 1250×600×210 | 10 Way | 250A |
| BS-S-CL-212/S | 1355×600×210 | 12 Way | 250A |
| BS-S-CL-214/S | 1460×600×210 | 14 Way | 250A |
| BS-S-CL-404/S | 1000×600×210 | 4 Way | 400A |
| BS-S-CL-406/S | 1105×600×210 | 6 Way | 400A |
| BS-S-CL-408/S | 1210×600×210 | 8 Way | 400A |
| BS-S-CL-410/S | 1315×600×210 | 10 Way | 400A |
| BS-S-CL-412/S | 1420×600×210 | 12 Way | 400A |
| BS-S-CL-414/S | 1525×600×210 | 14 Way | 400A |
| BS-S-CL-604/S | 1050×600×210 | 4 Way | 630A |
| BS-S-CL-606/S | 1155×600×210 | 6 Way | 630A |
| BS-S-CL-608/S | 1260×600×210 | 8 Way | 630A |
| BS-S-CL-610/S | 1365×600×210 | 10 Way | 630A |
| BS-S-CL-612/S | 1470×600×210 | 12 Way | 630A |
| BS-S-CL-614/S | 1575×600×210 | 14 Way | 630A |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
Three Phase MCB Enclosure without Main Switch Space
| Type No. | Dimensions(mm) | Specification | Rated Current(A) |
| H×W×D | |||
| BS-SM-CL-06/S | 504×450×118 | 6 Way | 100A |
| BS-SM-CL-10/S | 612×450×118 | 10 Way | 100A |
| BS-SM-CL-14/S | 720×450×118 | 14 Way | 100A |
| BS-SM-CL-18/S | 852×450×118 | 18 Way | 100A |
| BS-SM-CL-22/S | 1008×450×118 | 22 Way | 100A |
| BS-SM-CL-26/S | 1164×450×118 | 26 Way | 100A |
| BS-SM-CL-30/S | 1320×450×118 | 30 Way | 100A |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
Three Phase MCB Enclosure with Main Switch Space
| Type No. | Dimensions(mm) | Specification | Rated Current(A) |
| H×W×D | |||
| BS-SM-A100-02/S | 446×450×118 | 2 Way | 100A |
| BS-SM-A100-06/S | 554×450×118 | 6 Way | 100A |
| BS-SM-A100-10/S | 662×450×118 | 10 Way | 100A |
| BS-SM-A100-14/S | 770×450×118 | 14 Way | 100A |
| BS-SM-A100-18/S | 902×450×118 | 18 Way | 100A |
| BS-SM-A100-22/S | 1058×450×118 | 22 Way | 100A |
| BS-SM-A100-26/S | 1214×450×118 | 26 Way | 100A |
| BS-SM-A100-30/S | 1370×450×118 | 30 Way | 100A |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
More technical information and dimensions, to the top right corner of the page to download
