HV MCCB standard electrical system
Competitive Advantages
■ Well and High Quality Control■ Customer's Design and Logo are Welcome
■ Competitive Prices
■ Prompt Delivery
■ OEM Accepted
■ Packaging Detail Standard export packaging
Electrical parameters
Rated Voltage:690V-40/60HZ
Rated current:max 630A 3P/4P
Rated current short-term tolerance lcw:max 30KA(1 second)
Rated current peak tolerance lpk:peak value 60KA
HV MCCB standard electrical system
Compatible with IEC60439-1 / EN60439-1 / GB7251-1 standard examination

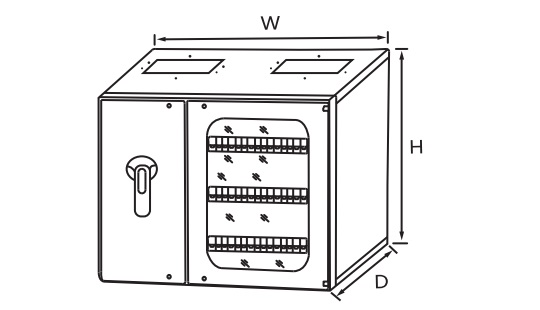

| Type No. | Dimensions(mm) | Ways | ||
| W | H | C | ||
| HMKA2-250(T) | 700 | 450 | 200 | 10×3 |
| HMKA3-250(T) | 700 | 600 | 200 | 15×3 |
| HMKA4-250(T) | 700 | 750 | 200 | 20×3 |
| HMKA5-250(T) | 700 | 900 | 200 | 25×3 |
| HMKA3-400(T) | 700 | 600 | 250 | 15×3 |
| HMKA4-400(T) | 800 | 750 | 250 | 20×3 |
| HMKA5-400(T) | 800 | 900 | 250 | 25×3 |
| HMKA3-630(T) | 800 | 600 | 250 | 15×3 |
| HMKA4-630(T) | 800 | 750 | 250 | 20×3 |
| HMKA5-630(T) | 800 | 900 | 250 | 25×3 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
More technical information and dimensions, to the top right corner of the page to download
