Knock Down Type

Download Center

Supply Includes
■ 9-folded profiles 4pcs/set/ (model:F): hinged uprights, panel mounts and locking elements assembled.
■ Top cover and base/ (Model:TCB): welded top frame, welded base, mounting plate fixing suppot.
■ Back door and front door (Model:FBD): plain door with lock, plain back panel.
■ Galvanised mounting plate(Model:MP)
■ Side panels(Model:PSP): 2pcs side panels with accessories
■ 70% save in sea freight (un-assembled type)

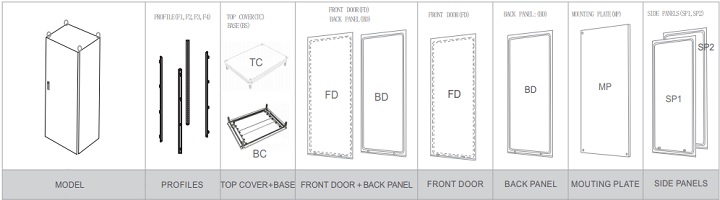

MODEL Dimension (mm) PROFILES TOP COVER+BASE FRONT DOOR + BACK PANEL FRONT DOOR BACK PANEL MOUTING PLATE SIDE PANELS
W × H × D
DJ-FSK 126/4 600 ×1200×400 F12 TCB 64 FBD 126 FD 126 BD 126 MP 126 ARSP 124
DJ-FSK 126/8 600 ×1200×800 F12 TCB 68 FBD 126 FD 126 BD 126 MP 126 ARSP 128
DJ-FSK 128/6 800 ×1200×600 F12 TCB 86 FBD 128 FD 128 BD 128 MP 128 ARSP 126
DJ-FSK 146/4 600 ×1400×400 F14 TCB 64 FBD 146 FD 146 BD 146 MP 146 ARSP 144
DJ-FSK 146/8 600 ×1400×800 F14 TCB 68 FBD 146 FD 146 BD 146 MP 146 ARSP 148
DJ-FSK 148/6 800 ×1400×600 F14 TCB 86 FBD 148 FD 148 BD 148 MP 148 ARSP 146
DJ-FSK 166/6 600 ×1600×600 F16 TCB 66 FBD 166 FD 166 BD 166 MP 166 ARSP 166
DJ-FSK 168/6 800 ×1600×600 F16 TCB 86 FBD 168 FD 168 BD 168 MP 168 ARSP 166
DJ-FSK 186/5 600 ×1800×500 F18 TCB 65 FBD 186 FD 186 BD 186 MP 186 ARSP 185
DJ-FSK 186/8 600 ×1800×800 F18 TCB 68 FBD 186 FD 186 BD 186 MP 186 ARSP 188
DJ-FSK 188/5 800 ×1800×500 F18 TCB 85 FBD 188 FD 188 BD 188 MP 188 ARSP 185
DJ-FSK 1810/4 1000×1800×400 F18 TCB 104 FBD 1810 FD 1810 BD 1810 MP 1810 ARSP 184
DJ-FSK 1810/6 1000×1800×600 F18 TCB 106 FBD 1810 FD 1810 BD 1810 MP 1810 ARSP 186
DJ-FSK 203/6 300×2000×600 F20 TCB 36 FBD 203 FD 203 BD 203 MP 203 ARSP 206
DJ-FSK 204/5 400×2000×500 F20 TCB 45 FBD 204 FD 204 BD 204 MP 204 ARSP 205
DJ-FSK 206/4 600 ×2000×400 F20 TCB 64 FBD 206 FD 206 BD 206 MP 206 ARSP 204
DJ-FSK 206/6 600 ×2000×600 F20 TCB 66 FBD 206 FD 206 BD 206 MP 206 ARSP 206
DJ-FSK 208/4 800 ×2000×400 F20 TCB 84 FBD 208 FD 208 BD 208 MP 208 ARSP 204
DJ-FSK 208/6 800 ×2000×600 F20 TCB 86 FBD 208 FD 208 BD 208 MP 208 ARSP 206
DJ-FSK 2010/4 1000×2000×400 F20 TCB 104 FBD 2010 FD 2010 BD 2010 MP 2010 ARSP 204
DJ-FSK 2010/6 1000×2000×600 F20 TCB 106 FBD 2010 FD 2010 BD 2010 MP 2010 ARSP 206
DJ-FSK 226/6 600 ×2200×600 F22 TCB 66 FBD 226 FD 226 BD 226 MP 226 ARSP 226
DJ-FSK 228/6 800 ×2200×600 F22 TCB 86 FBD 228 FD 228 BD 228 MP 228 ARSP 226
DJ-FSK 2210/6 1000×2200×600 F22 TCB 106 FBD 2210 FD 2210 BD 2210 MP 2210 ARSP 226
Double Door
DJ-FSKD 1810/4 1000×1800×400 F18/D TCB 104 FBD 1810 FD 1810 BD 1810 MP 1810 ARSP 184
DJ-FSKD 1810/6 1000×1800×600 F18/D TCB 106 FBD 1810 FD 1810 BD 1810 MP 1810 ARSP 186
DJ-FSKD 1812/5 1200×1800×500 F18/D TCB 125 FBD 1812 FD 1812 BD 1812 MP 1812 ARSP 185
DJ-FSKD 2010/5 1000×2000×500 F20/D TCB 105 FBD 2010 FD 2010 BD 2010 MP 2010 ARSP 205
DJ-FSKD 2010/8 1000×2000×800 F20/D TCB 108 FBD 2010 FD 2010 BD 2010 MP 2010 ARSP 208
DJ-FSKD 2012/5 1200×2000×500 F20/D TCB 125 FBD 2012 FD 2012 BD 2012 MP 2012 ARSP 205
DJ-FSKD 2012/8 1200×2000×800 F20/D TCB 128 FBD 2012 FD 2012 BD 2012 MP 2012 ARSP 208
DJ-FSKD 2210/8 1000×2200×800 F22/D TCB 108 FBD 2210 FD 2210 BD 2210 MP 2210 ARSP 228
DJ-FSKD 2212/8 1200×2200×800 F22/D TCB 128 FBD 2212 FD 2212 BD 2212 MP 2212 ARSP 228
Customize more size to be request to the clients,
please email:happy@henghao.hk,
                     export@henghao.hk


More technical information and dimensions, to the top right corner of the page to download
