Mild Steel Flour Standing Enclosure
Standard Configuration
■ Designed to accept the following disconnect switches and circuit breakers■ ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers
■ Allen Bradley 1494F flange mounted disconnect switches and 1494D flange mounted operators for circuit breakers. Allen Bradley 1494V variable depth flange mounted disconnect switches and circuit breaker mechanisms
■ C-H Westinghouse Type C361 disconnect switches and operator mechanisms, and type C371 circuit breakers and circuit breaker operating mechanisms. Flex Shaft TM handle operators for circuit breakers.
■ General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also Spectra-Flex cable operators for circuit breakers.
■ Siemens I-T-E Max-Flex flange mounted variable depth operating handles for disconnect switches and circuit breakers.

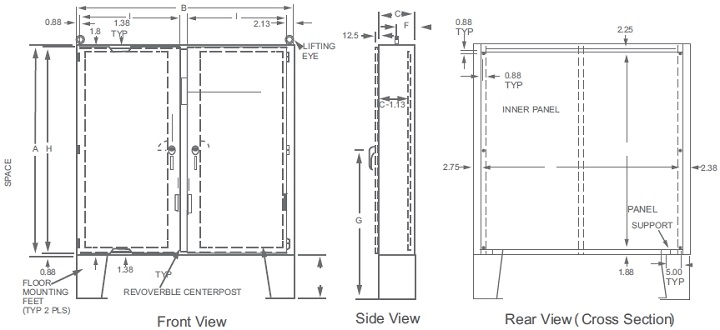

| Model | Panel Size(inch) | |||||||||
| A | B | C | D | E | F | G | H | I | K | |
| DJ-FSP604912 | 60.13 | 48.88 | 12.13 | 56 | 44 | 6.06 | 45.06 | 59.13 | 22.5 | 20.81 |
| DJ-FSP606112 | 60.13 | 60.88 | 12.13 | 56 | 56 | 6.06 | 45.06 | 59.13 | 28.5 | 26.81 |
| DJ-FSP726112 | 72.13 | 60.88 | 12.13 | 68 | 56 | 6.06 | 51.06 | 71.13 | 28.5 | 26.81 |
| DJ-FSP727312 | 72.13 | 72.88 | 12.13 | 68 | 68 | 6.06 | 51.06 | 71.13 | 34.5 | 32.81 |
| DJ-FSP727318 | 72.13 | 72.88 | 18.13 | 68 | 68 | 9.06 | 51.06 | 71.13 | 34.5 | 32.81 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||||||||
More technical information and dimensions, to the top right corner of the page to download
