Switch Board
Competitive Advantages
■ Well and High Quality Control■ Customer's Design and Logo are Welcome
■ Competitive Prices
■ Prompt Delivery
■ OEM Accepted
■ Packaging Detail Standard export packaging
Switch Board
Cold Rolled Steel, Outdoor Power Coating RAL 7032 or Orange With Earthing Cable

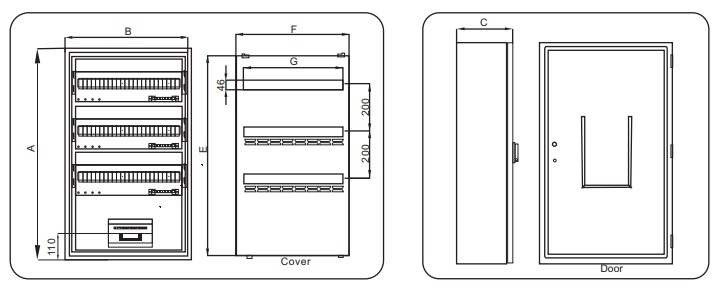

| Item Code | Dimension(mm) | No.of Door Lock | Din Rail | Thickness | ||||||
| Height(A) | Width(B) | Depth(C) | Length(D) | Length(E) | Rows | Ways | Body | Door | ||
| DJSB6-16 | 400 | 410 | 230 | 351 | 288 | 1 | 1 | 16 | 1.5 | 1.5 |
| DJSB6-24 | 700 | 350 | 230 | 651 | 216 | 1 | 2 | 12 | 1.5 | 1.5 |
| DJSB6-36 | 900 | 350 | 230 | 851 | 216 | 1 | 3 | 12 | 1.5 | 1.5 |
| DJSB6-48 | 900 | 410 | 230 | 851 | 288 | 1 | 3 | 16 | 1.5 | 1.5 |
| DJSB6-72 | 900 | 540 | 230 | 851 | 432 | 1 | 3 | 24 | 1.5 | 1.5 |
| DJSB6-96 | 1100 | 540 | 230 | 1051 | 432 | 2 | 4 | 24 | 1.5 | 1.5 |
| DJSB6-120 | 1100 | 650 | 230 | 1051 | 540 | 2 | 4 | 30 | 1.5 | 1.5 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||||||||
More technical information and dimensions, to the top right corner of the page to download
