Location： Products > Industry and electricity > Deluxe Vehicle Power Pedestal
DJB-DPP

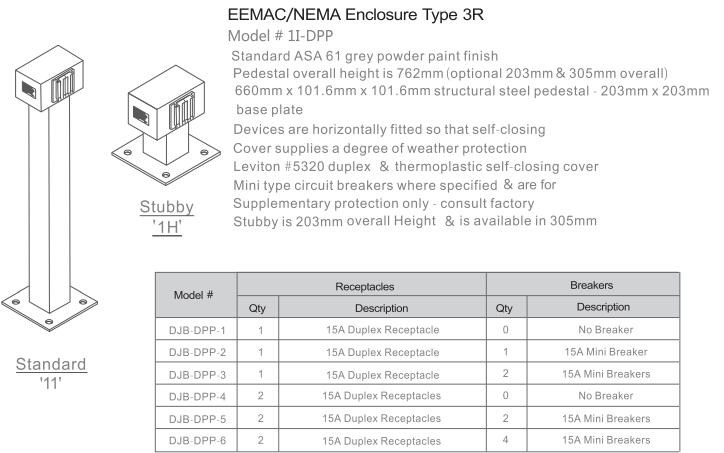

EEMAC/NEMA Enclosure Type 3R
■ Model # 1I-DPP■ Standard ASA 61 grey powder paint finish
■ Pedestal overall height is 762mm(optional 203mm&305mm overall)
■ 660mm x 101.6mm x 101.6mm structural steel pedestal - 203mm x203mm base plate
■ Devices are horizontally fitted so that self-closing
■ Cover supplies a degree of weather protection
■ Leviton #5320 duplex & thermoplastic self-closing cover
■ Mini type circuit breakers where specified & are for
■ Supplementary protection only - consult factory
■ Stubby is 203mm overall Height & is available in 305mm
