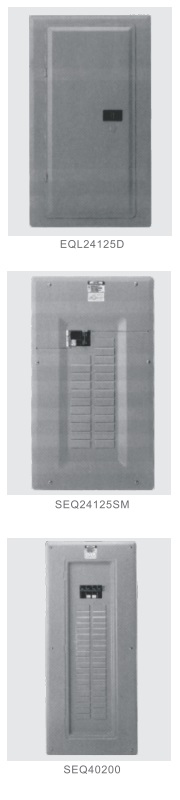

DJEQL & DJSEQ Single Phase Loadcentres
Specification Guide
■ Main Breaker loadcentre:■ 120/240V,100A-200A,24-80 Circuits, 1Ø,3W
■ 120/208V,100A-200A,12-84 Circuits, 3Ø,4W
■ Main Lugs Loadcentre:
■ 120/240V,60-200A,2-80 Circuits, 1Ø,3W
■ 120/208V,125A-200A,12-42 Circuits, 3Ø,4W
■ Circuit Breakers: 1 Pole 15-70 Amp 2 Pole 15-200 Amp 3 Pole 15-100 Amp
EQL Loadcentres with main lugs only 1 phase 3 wire 240 VAC max| Type No. | Number of Circuits | Skid Qty | Main Amps | Dimensions(mm) | Lug Data | Mounting Trim | Door Kit catalog Number | Factory Mod |
| H×W×D | ||||||||
| DJEQL260S | 2/4 | 300 | 60 | 178×127×70 | 3 | comb. | N/A | N/A |
| DJEQL1400 | 4/8 | 90 | 100 | 322×168×90 | 1 | comb. | N/A | N/A |
| DJEQL8100D* | 8/16 | 72 | 100 | 378×305×95 | 4-2/0 | comb. | DK8-A | N/A |
| DJEQL12125D | 12/24 | 45 | 125 | 429×305×96 | 4-2/0 | comb. | DK12-A | ① |
| DJEQL1625D | 16/32 | 45 | 125 | 479×305×95 | 4-2/0 | comb. | DK16-A | ① |
| DJEQL2425D | 24/48 | 36 | 125 | 613×331×95 | 4-2/0 | comb. | DK24-A | ① |
| DJEQL32200D | 32/64 | 30 | 200 | 838×362×102 |
4-250 MCM |
comb. | DKL32-A | ① |
| DJEQL40200D | 40/80 | 30 | 200 | 838×362×102 |
6-250 MCM |
comb. | DKL40-A | ① |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||||||
Service Entrance Loadcentres with Factory installed main breaker 1 phase 3 wire 240VAC max
| Type No. | Number of Circuits | Skid Qty | Main Amps | Dimensions(mm) | Lug Data | Mounting Trim | Door Kit catalog Number | Factory Mod |
| H×W×D | ||||||||
| DJSEQ2100SM* | 12/24 | 54 | 100 | 445×333×95 | 4.2/0 | comb. | DK1216SM-1 | ① |
| DJSEQ16100SM* | 16/32 | 36 | 445×333×95 | 4.2/0 | comb. | |||
| DJSEQ24100SM | 24/48 | 36 | 100 | 613×333×95 | 4.2/0 | comb. | DK24SM-1 | ① |
| DJSEQ24125SM | 24/48 | 36 | 125 | comb. | ||||
| DJSEC24150 | 24/48 | 30 | 150 | 686×362×102 |
250 MCM |
comb. | DKS24-2A | ① |
| DJSEC24200 | 24/48 | 30 | 200 | comb. | ||||
| DJSEQ24100SMK | 24/48 | 30 | 100 | 613×333×95 | 4.2/0 | comb. | DK24SM-1 | ① |
| DJSEQ32100SM | 32/114 | 30 | 100 | 689×333×95 | 4.2/0 | comb. | DK32SM-1 | ① |
| DJSEQ32125SM | 32/114 | 30 | 125 | comb. | ||||
| DJSEQ32150 | 32/114 | 30 | 150 | 838×362×102 |
250 MCM |
comb. | DKS32-2A | ① |
| DJSEQ32200 | 32/114 | 30 | 200 | comb. | ||||
| DJSEQ40100 | 40/80 | 30 | 100 | 914×362×102 |
6-250 MCM |
comb. | DKS40-2A | ① |
| DJSEQ40125 | 40/80 | 30 | 125 | comb. | ||||
| DJSEQ40150 | 40/80 | 30 | 150 | comb. | ||||
| DJSEQ40200 | 40/80 | 30 | 200 | comb. | ||||
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||||||
Standard SEQ24100SMK with additional knockouts
Note: Comb= Combination Flush/Surface mounted.Certified for use with any combination of full or half module plug-in circuit breakers. Certified for mounting vertical, horizontal or inverted and for use with CU/AL conductors including compact stranded. All neutral bar connectors are No.14-No.4.
Typical circuit rating(ie.24/48) indicates the circuit capacity of the loadcentre is 24 full module(1'')breaker of48 half-module(1/2'')breakers.
Note: Comb= Combination Flush/Surface mounted.Certified for use with any combination of full or half module plug-in circuit breakers. Certified for mounting vertical, horizontal or inverted and for use with CU/AL conductors including compact stranded. All neutral bar connectors are No.14-No.4.
Typical circuit rating(ie.24/48) indicates the circuit capacity of the loadcentre is 24 full module(1'')breaker of48 half-module(1/2'')breakers.
More technical information and dimensions, to the top right corner of the page to download
