DJFP-200 Square Meter Sockets
Features
■ Standard meter sockets are manufactured from 1.2-1.5MM galvanized steel with a baked gray powder polyester paint finish to improve corrosion resistance■ These meter socket suitable for service voltage 600Vac Max
■ Ample gutter space for easy wiring
■ Convenient knockouts in side back and bottom
■ Lay in type terminals with pressure plates for easy connections
■ Meter sockets are designed to accept conduit hubs from 1'' to 2-1/2'' size

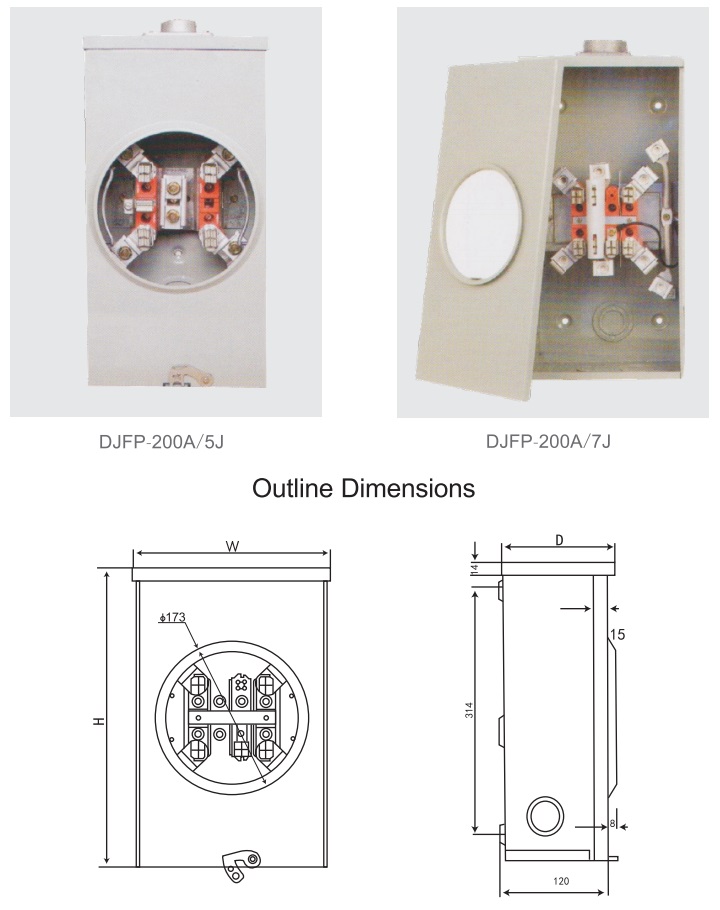

Specification
| Product Number | Description | Outline Dimensions | ||
| H | W | D | ||
| DJFP-200A/4J | 1 Phase, 200A,4 jaw, ring type | 412 | 222 | 134 |
| DJFP-200A/5J | 1 Phase, 200A,5 jaw, ring type | 412 | 222 | 134 |
| DJFP-200AN/4J | 1 Phase, 200A,4 jaw, ringless type | 429 | 208 | 130 |
| DJFP-200AN/4J | 1 Phase, 200A,5 jaw, ringless type | 429 | 208 | 130 |
| DJFP-200A/7J | 3 Phase, 200A,7 jaw, ring type | 498 | 235 | 136 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
More technical information and dimensions, to the top right corner of the page to download
