TPN MCB Distribution Board
Technical Data
■ Conform to standard BS EN60439 IEC 60439 part 3■ Supplied with neutral and earth terminal
■ Made of galvanized steel with 1.2mm thickness
■ Rated operational voltage: 230VAC, 400VAC 50/60Hz
■ Rated insulation voltage: 600VAC
■ Rated short time withstand current: 18KA-0.2S
■ Degree of protection: IP31
■ Busbar rating: 100A, 160A, 200A for option

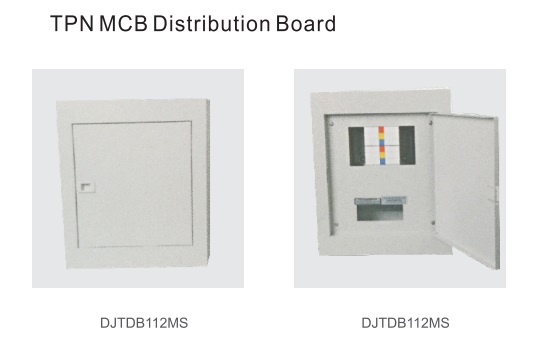

TPN MCB Board with Main Switch Incoming-Surface Type
| Type No. | Dimensions(mm) |
No.of ways |
| H×W×D | ||
| DJTDB112MS | 457×405×99.5 | 4 |
| DJTDB118MS | 511×405×99.5 | 6 |
| DJTDB124MS | 565×405×99.5 | 8 |
| DJTDB130MS | 619×405×99.5 | 10 |
| DJTDB136MS | 673×405×99.5 | 12 |
| DJTDB142MS | 727×405×99.5 | 14 |
| DJTDB148MS | 781×405×99.5 | 16 |
| DJTDB154MS | 835×405×99.5 | 18 |
| DJTDB164MS | 889×405×99.5 | 20 |
| DJTDB166MS | 943×405×99.5 | 22 |
| DJTDB172MS | 997×405×99.5 | 24 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|
TPN MCB Board with Main Switch Incoming-Flush Type
| Type No. |
Dimensions(mm) (H×W×D) |
No.of ways |
| DJTDB112MF | 480×430×106.5 | 4 |
| DJTDB118MF | 534×430×106.5 | 6 |
| DJTDB124MF | 588×430×106.5 | 8 |
| DJTDB130MF | 642×430×106.5 | 10 |
| DJTDB136MF | 696×430×106.5 | 12 |
| DJTDB142MF | 750×430×106.5 | 14 |
| DJTDB148MF | 804×430×106.5 | 16 |
| DJTDB154MF | 858×430×106.5 | 18 |
| DJTDB164MF | 912×430×106.5 | 20 |
| DJTDB166MF | 966×430×106.5 | 22 |
| DJTDB172MF | 1020×430×106.5 | 24 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|

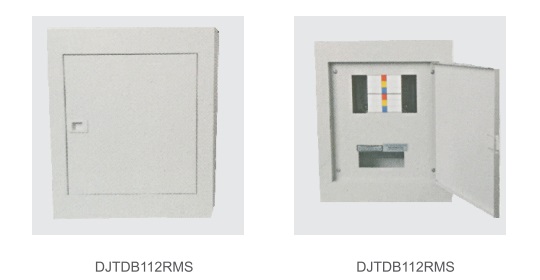

TPN MCB Board with Main Switch & RCD Incoming
-Surface Type (for 100A switch)
| Type No. | Dimensions(mm) |
No.of ways |
| H×W×D | ||
| DJTDB112RMS | 457×405×99.5 | 4 |
| DJTDB118RMS | 511×405×99.5 | 6 |
| DJTDB124RMS | 565×405×99.5 | 8 |
| DJTDB130RMS | 619×405×99.5 | 10 |
| DJTDB136RMS | 673×405×99.5 | 12 |
| DJTDB142RMS | 727×405×99.5 | 14 |
| DJTDB148RMS | 781×405×99.5 | 16 |
| DJTDB154RMS | 835×405×99.5 | 18 |
| DJTDB164RMS | 889×405×99.5 | 20 |
| DJTDB166RMS | 943×405×99.5 | 22 |
| DJTDB172RMS | 997×405×99.5 | 24 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|
TPN MCB Board with Main Switch & RCD Incoming
-Flush Type (for 100A switch)
| Type No. |
Dimensions(mm) (H×W×D) |
No.of ways |
| DJTDB112RMF | 480×430×106.5 | 4 |
| DJTDB118RMF | 534×430×106.5 | 6 |
| DJTDB124RMF | 588×430×106.5 | 8 |
| DJTDB130RMF | 642×430×106.5 | 10 |
| DJTDB136RMF | 696×430×106.5 | 12 |
| DJTDB142RMF | 750×430×106.5 | 14 |
| DJTDB148RMF | 804×430×106.5 | 16 |
| DJTDB154RMF | 858×430×106.5 | 18 |
| DJTDB164RMF | 912×430×106.5 | 20 |
| DJTDB166RMF | 966×430×106.5 | 22 |
| DJTDB172RMF | 1020×430×106.5 | 24 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|
More technical information and dimensions, to the top right corner of the page to download
