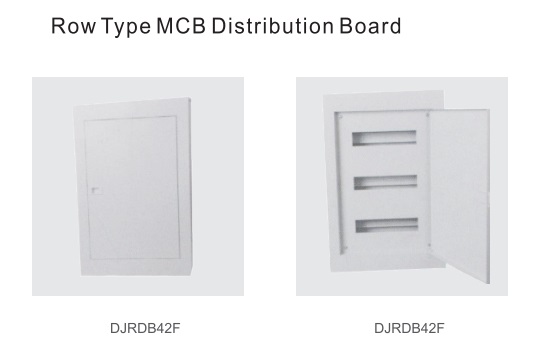

Row Type MCB Distribution Board
Technical Data
■ Conform to standard BS,EN,60439,IEC 60439 part 3■ Supplied with neutral and earth terminal
■ Made of galvanized steel with 1.2mm thickness 14 module width
■ Index of protection: IP31 as per IEC 60529
Flush Mounting Type
| Type No. |
No.of row |
No.of modules |
Height (mm) |
Width (mm) |
Depth (mm) |
| DJRDB14F | 1 | 14 | 330 | 430 | 99.5 |
| DJRDB28F | 2 | 28 | 480 | 430 | 99.5 |
| DJRDB42F | 3 | 42 | 630 | 430 | 99.5 |
| DJRDB56F | 4 | 56 | 780 | 430 | 99.5 |
| DJRDB70F | 5 | 70 | 930 | 430 | 99.5 |
| DJRDB84F | 6 | 84 | 1080 | 430 | 99.5 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||||
Surface Mounting Type
| Type No. |
No.of rows |
No.of modules |
Height (mm) |
Width (mm) |
Depth (mm) |
| DJRDB14S | 1 | 14 | 307 | 405 | 99.5 |
| DJRDB28S | 2 | 28 | 457 | 405 | 99.5 |
| DJRDB42S | 3 | 42 | 607 | 405 | 99.5 |
| DJRDB56S | 4 | 56 | 757 | 405 | 99.5 |
| DJRDB70S | 5 | 70 | 907 | 405 | 99.5 |
| DJRDB84S | 6 | 84 | 1057 | 405 | 99.5 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||||
More technical information and dimensions, to the top right corner of the page to download
