DBHM5
Technical Data
■ Standard: GB7251.3-1997 GB17466-1998 CE&IEC62,208■ Rated Voltage: 230/400V
■ Max Current: 200A
■ Frequenoy: 50/60 HZ
■ IP Rating: IP40
■ Main Switch: MCB,RCB,3P,4P
■ Branch Switch: MCB,RCB,1P,3P
■ MCB Brand: ABB,MEM,Siemens etc.

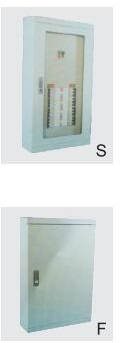

Note: S= Surface Type F= Flush Type| Type No. | Dimensions(mm) |
No.of Rows |
No.of modules |
Weight (kg) |
| H×W×D | ||||
| DBHM5-100-02F/S | 400×500×120 | 2 | 6 | 2 |
| DBHM5-100-04F/S | 400×550×120 | 2 | 12 | 4 |
| DBHM5-100-06F/S | 400×600×120 | 2 | 18 | 6 |
| DBHM5-100-08F/S | 400×650×120 | 2 | 24 | 8 |
| DBHM5-100-10F/S | 400×700×120 | 2 | 30 | 10 |
| DBHM5-100-12F/S | 400×800×120 | 2 | 36 | 12 |
| DBHM5-200-02F/S | 400×550×135 | 2 | 6 | 2 |
| DBHM5-200-04F/S | 400×600×135 | 2 | 12 | 4 |
| DBHM5-200-06F/S | 400×650×135 | 2 | 18 | 6 |
| DBHM5-200-08F/S | 400×700×135 | 2 | 24 | 8 |
| DBHM5-200-10F/S | 400×750×135 | 2 | 30 | 10 |
| DBHM5-200-12F/S | 400×800×135 | 2 | 36 | 12 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
More technical information and dimensions, to the top right corner of the page to download
