DBHM3
Technical Data
■ Standard: GB7251.3-1997 GB17466-1998 CE&IEC62,208■ Rated Voltage: 230/400V
■ Max Current: 125A
■ Frequenoy: 50/60 HZ
■ IP Rating: IP40
■ Main Switch: MCB,RCB,3P,4P
■ Branch Switch: MCB,RCB,1P,2P,3P,4P
■ MCB Brand: ABB,MEM,Siemens etc.

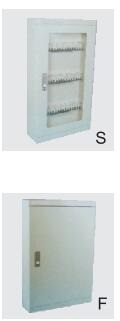

Note: S= Surface Type F= Flush Type
| Type No. | Dimensions(mm) |
No.of Rows |
Branch Switch single phas |
Branch three Phase |
| H×W×D | ||||
| DBHM3-005F/S | 400×300×120 | 1 | 15 | 6 |
| DBHM3-010F/S | 400×450×120 | 2 | 30 | 10 |
| DBHM3-015F/S | 400×610×120 | 3 | 45 | 15 |
| DBHM3-020F/S | 400×750×120 | 4 | 60 | 20 |
| DBHM3-025F/S | 400×900×120 | 5 | 75 | 25 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
More technical information and dimensions, to the top right corner of the page to download
