Multi Row Type A Distribution Boards
Technical Data
■ Standard: IEC 439-3 & BS 60439 part 1&3■ Multi row type
■ Max.load: 100 amps
■ Max.voltage: 230/400 Vac, 50/60 Hz
■ Range: 20,32,48,64 and 80 modules 1,2,3,4 and 5 rows
■ Busbar type
■ Max.load: 160 amps Available in 250 amps on request
■ Max.voltage: 230/400 Vac, 50/60 Hz
■ Range: 4,6,8,12 and 16 TP&N ways 12,18,24,36 and 48 SP&N ways
■ Degree of protection: IP 41, pan assemblies IP 20
■ Enclosure material: Cold rolled sheet steel Box and cover 1 mm
■ Enclosure finish: Gray, RAL 7035
■ Fault level: 35 KA
Multi Row Type A Distribution Boards(distance between rows 150mm)
| Type No. | Dimensions(mm) |
No.of rows |
No.of modules |
Weight (kg) |
| H×W×D | ||||
| DB 120 RXF | 320×420×132 | 1 | 20 | 6 |
| DB 232 RXF | 540×420×132 | 2 | 32 | 10.6 |
| DB 348 RXF | 690×420×132 | 3 | 48 | 13 |
| DB 464 RXF | 840×420×132 | 4 | 64 | 17 |
| DB 580 RXF | 990×420×132 | 5 | 80 | 20 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
TP+N Busbar Type Distribution Boards
| Type No. | Dimensions(mm) |
No.of rows |
Weight (kg) |
| H×W×D | |||
| DB 312 CF-16 | 540×420×132 | 4 | 11.7 |
| DB 318 CF-16 | 600×420×132 | 6 | 13.1 |
| DB 324 CF-16 | 650 ×420×132 | 8 | 14.1 |
| DB 336 CF-16 | 758×420×132 | 12 | 16.1 |
| DB 348 CF-16 | 870×420×132 | 16 | 20.1 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
Standard:GB7251.3-1997, GB17466-1998,CE&IEC62、208
Rated Voltage:230/400V
Max Current:125A
Frequenoy:50/60HZ
IP Rating:IP40
Main Switch:MCB,RCB,3P,4P
Branch Switch:MCB,RCB,1P,2P,3P,4P
MCB Brand:ABB,MEM,Siemens etc

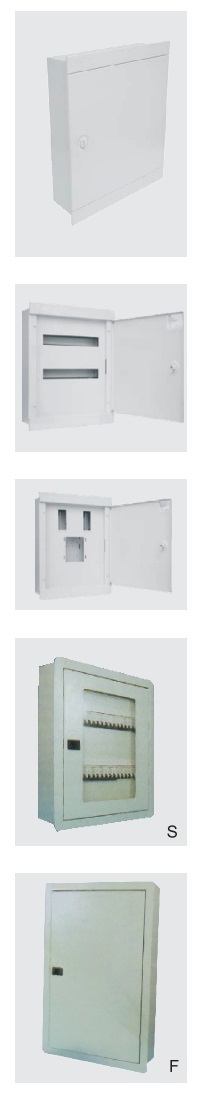

Note:S=Surface Type F=Flush Type
| Type No. | Dimensions(mm) |
No.of rows |
No.of modules |
Weight (kg) |
| H×W×D | ||||
| DBHM6-005F/S | 430×330×110 | 1 | 15 | 5 |
| DBHM6-010F/S | 430×480×110 | 2 | 30 | 10 |
| DBHM6-015F/S | 430×630×110 | 3 | 45 | 15 |
| DBHM6-020F/S | 430×780×110 | 4 | 60 | 20 |
| DBHM6-025F/S | 430×930×110 | 5 | 75 | 25 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
More technical information and dimensions, to the top right corner of the page to download
