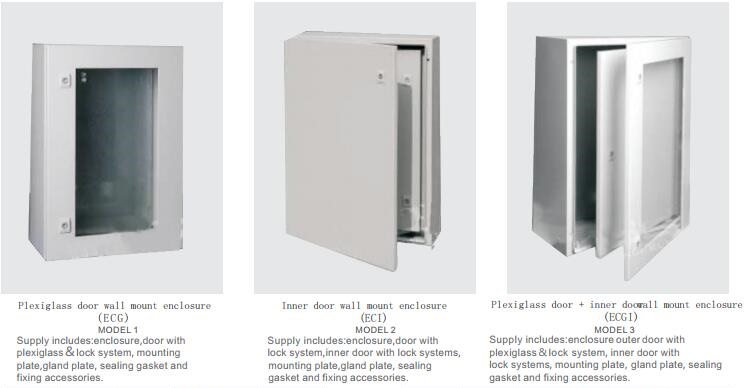

Plexiglass Door-Inner Door Wall Mount Enclosure
Standard Configuration
■ Color:RAL 7032 or RAL 7035■ Surface finish:epoxy polyester powder coating textured finish
■ Protection degree: IP66
■ Against mechanical impacts:IK10
■ Enclosure&door&inner door:0.8mm,1.0mm,1,2mm,1.5mm&2.0mm can be choosed by customers.
■ Mounting plate:1.2mm,1.5mm,2.0mm galvanized steel.
| Model 1 | Model 2 | Model 3 | Dimensions(mm) | No.of lock |
| W×H×D | ||||
| DJ-ECG2 315 | DJ-ECI2 315 | DJ-ECGI2 315 | 200×300×150 | 1 |
| DJ-ECG3 415 | DJ-ECI3 415 | DJ-ECGI3 415 | 300×400×150 | 1 |
| DJ-ECG3 420 | DJ-ECI3 420 | DJ-ECGI3 420 | 300×400×200 | 1 |
| DJ-ECG4 315 | DJ-ECI4 315 | DJ-ECGI4 315 | 400×300×150 | 1 |
| DJ-ECG4 420 | DJ-ECI4 420 | DJ-ECGI4 420 | 400×400×200 | 1 |
| DJ-ECG4 520 | DJ-ECI4 520 | DJ-ECGI4 520 | 400×500×200 | 1 |
| DJ-ECG4 620 | DJ-ECI4 620 | DJ-ECGI4 620 | 400×600×200 | 2 |
| DJ-ECG5 520 | DJ-ECI5 520 | DJ-ECGI5 520 | 500×500×200 | 1 |
| DJ-ECG5 725 | DJ-ECI5 725 | DJ-ECGI5 725 | 500×700×250 | 2 |
| DJ-ECG6 420 | DJ-ECI6 420 | DJ-ECGI6 420 | 600×400×200 | 1 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
| Model 1 | Model 2 | Model 3 | Dimensions(mm) | No.of lock |
| W×H×D | ||||
| DJ-ECG6 620 | DJ-ECI6 620 | DJ-ECGI6 620 | 600×600×200 | 2 |
| DJ-ECG6 625 | DJ-ECI6 625 | DJ-ECGI6 625 | 600×600×250 | 2 |
| DJ-ECG6 630 | DJ-ECI6 630 | DJ-ECGI6 630 | 600×600×300 | 2 |
| DJ-ECG6 820 | DJ-ECI6 820 | DJ-ECGI6 820 | 600×800×200 | 2 |
| DJ-ECG6 825 | DJ-ECI6 825 | DJ-ECGI6 825 | 600×800×250 | 2 |
| DJ-ECG6 830 | DJ-ECI6 830 | DJ-ECGI6 830 | 600×800×300 | 2 |
| DJ-ECG6 1230 | DJ-ECI6 1230 | DJ-ECGI6 1230 | 600×1200×300 | 3 |
| DJ-ECG8 830 | DJ-ECI8 830 | DJ-ECGI8 830 | 800×800×300 | 2 |
| DJ-ECG8 1030 | DJ-ECI8 1030 | DJ-ECGI8 1030 | 800×1000×300 | 3 |
| DJ-ECG8 1230 | DJ-ECI8 1230 | DJ-ECGI8 1230 | 800×1200×300 | 3 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
More technical information and dimensions, to the top right corner of the page to download
