Aluminum Junction Box
Construction
■ Formed from 0.08 Type 5052 H-32 aluminum.■ Smooth, continuously welded seams without knockouts, cutouts, or holes.
■ Formed lip on enclosure to exclude flowing liquids and contaminants.
■ Welded brackets provide for enclosure mounting.
■ Continuously hinged cover has aluminum hinge and 。 provides 180 opening
■ Door latches feature the added safety of quarter turn slot requiring use of tool for opening,
■ Quarter turn latches formed from 316 stainless steel.
■ Seamless poured-in place gasket.
■ Models larger than 4x4 include a removable 14 gauge galvanized inner panel.
■ Tapped studs are provided for mounting inner panels.
■ A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
■ Grounding and panel mounting hardware provided.

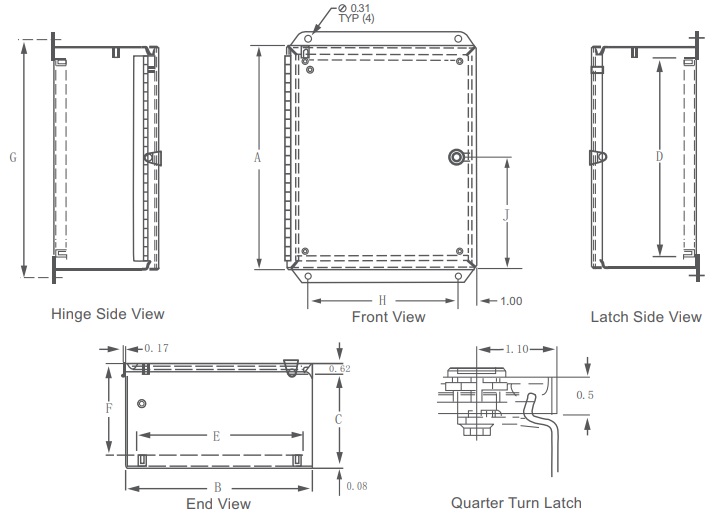

Aluminum Junction Box
| Overall Dimensions(inch) | Panel Size(inch) | ||||||||
| Part No. | A | B | C | D | E | F | G | H | J |
| DJ443AL | 4 | 4 | 3 | N/A | N/A | - | 4.75 | 2 | 2 |
| DJ643AL | 6 | 4 | 3 | 4.88 | 2.88 | 2.82 | 6.75 | 2 | 3 |
| DJ863AL | 8 | 6 | 3.5 | 6.75 | 4.88 | 3.32 | 8.75 | 4 | 4 |
| DJ444AL | 4 | 4 | 4 | N/A | N/A | - | 4.75 | 2 | 2 |
| DJ644AL | 6 | 4 | 4 | 4.88 | 2.88 | 3.82 | 6.75 | 2 | 3 |
| DJ664AL | 6 | 6 | 4 | 4.88 | 4.88 | 3.82 | 6.75 | 4 | 3 |
| DJ884AL | 8 | 8 | 4 | 6.75 | 6.88 | 3.82 | 8.75 | 6 | 4 |
| DJ1084AL | 10 . 00 | 8 | 4 | 8.75 | 6.88 | 3.82 | 10.75 | 6 | 5 |
| DJ1264AL | 12 . 00 | 6 | 4 | 10.75 | 4.88 | 3.82 | 12.75 | 4 | 6 |
| DJ12124AL | 12 . 00 | 12 . 00 | 4 | 10.75 | 10.88 | 3.82 | 12.75 | 10 | 6 |
| DJ12105AL | 12 . 00 | 10 . 00 | 5 | 10.75 | 8.88 | 4.82 | 12.75 | 8 | 6 |
| DJ866AL | 8 | 6 | 6 | 6.75 | 4.88 | 5.82 | 8.75 | 4 | 4 |
| DJ1086AL | 10 . 00 | 8 | 6 | 8.75 | 6.88 | 5.82 | 10.75 | 6 | 5 |
| DJ10106AL | 10 . 00 | 10 . 00 | 6 | 8.75 | 8.88 | 5.82 | 10.75 | 8 | 5 |
| DJ12106AL | 12 . 00 | 10 . 00 | 6 | 10.75 | 8.88 | 5.82 | 12.75 | 8 | 6 |
| DJ12126AL | 12 . 00 | 12 . 00 | 6 | 10.75 | 10.88 | 5.82 | 12.75 | 10 | 6 |
| DJ14126AL | 14 . 00 | 12 . 00 | 6 | 12.75 | 10.88 | 5.82 | 14.75 | 10 | 7 |
| DJ16146AL | 16 . 00 | 14 . 00 | 6 | 14.75 | 12.88 | 5.82 | 16.75 | 12 | 8 |
| DJ12108AL | 12 . 00 | 10 . 00 | 8 | 10.75 | 8.88 | 7.82 | 12.75 | 8 | 6 |
| DJ14128AL | 14 . 00 | 12 . 00 | 8 | 12.75 | 10.88 | 7.82 | 14.75 | 10 | 7 |
| DJ16148AL | 16 . 00 | 14 . 00 | 8 | 14.75 | 12.88 | 7.82 | 16.75 | 12 | 8 |
| DJ161410AL | 16 . 00 | 14 . 00 | 10 | 14.75 | 12.88 | 9.82 | 16.75 | 12 | 8 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||||||||
More technical information and dimensions, to the top right corner of the page to download
