Location： Products > Communication network series > 2-Post Open Frame Rack-OFR
2-Post Open Frame Rack-OFR
Specifications
■ OFR Series 2-Post open Frame Racks for networking applications in IT environments. ■ OFR Series 2-Post Open Frame Rack is an idea for space constrained or cost conscious 19-inch rack mount applications. Multiple units can be bolted together side by side.
■ OFR Series 2-Post Open Frame Rack is of modular design and low-cost. The additional rack depth provides extra room for high density equipment and cable needs.
■ Highlinghts :
■ Solid structure,modular design,easy mounting.
■ Low cost,easy disassemble,delivery and assemble.
■ Many accessories optional according to requirement.
■ Can be supplied CKD Package(Completely Knock Down)

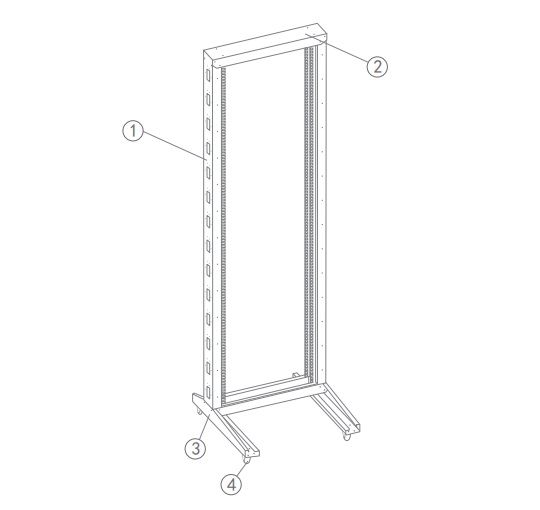

2-Post Open Frame Rack-OFR
| S/N | Name | Quantity(pcs) |
| 1 | Pole | 2 |
| 2 | Horizontal beam | 2 |
| 3 | Plinth | 2 |
| 4 | Castor(2 with braker) | 4 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|

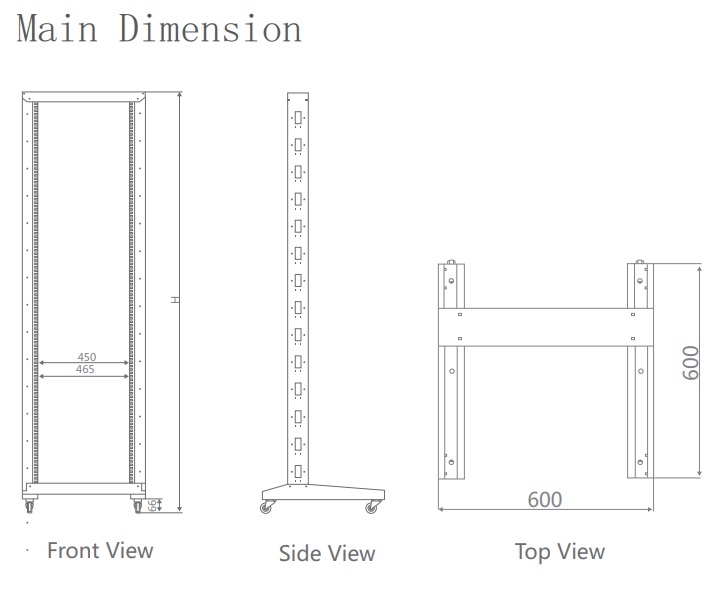

2-Post Open Frame Rack-OFR-Specifications
| Model |
Capacity (U) |
Dimension |
Volume (CBM) |
CKD packing Dimension |
Volume (CBM) |
| W×H×D(mm) | W×H×D(mm) | ||||
| OFR6622 | 22 | 600×600×1185 | 0.427 | 140×120×1110 | 0.019 |
| OFR6632 | 32 | 600×600×1625 | 0.585 | 140×120×1550 | 0.026 |
| OFR6637 | 37 | 600×600×1850 | 0.666 | 140×120×1775 | 0.03 |
| OFR6642 | 42 | 600×600×2070 | 0.745 | 140×120×1995 | 0.034 |
| OFR6647 | 47 | 600×600×2295 | 0.826 | 140×120×2220 | 0.037 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||||
More technical information and dimensions, to the top right corner of the page to download
