Componets of SDR Series Standing Network Rack
Features
■ Adjustable Mounting Rails■ Front and rear sets of vertical rails adjust in quarter-inch increments, Adjustment is quick and convenientsimply unscrew the rails, slide them to the required depth and refasten.
■ Glass Front Door
■ Toughened glass front door.
■ Moon Light Lock
■ Special moon light lock makes the appearance of the rack elegant.
■ Adjustable Leveiling Feet and Casters
■ Adjustable levelling feet and casters are available simultaneously.

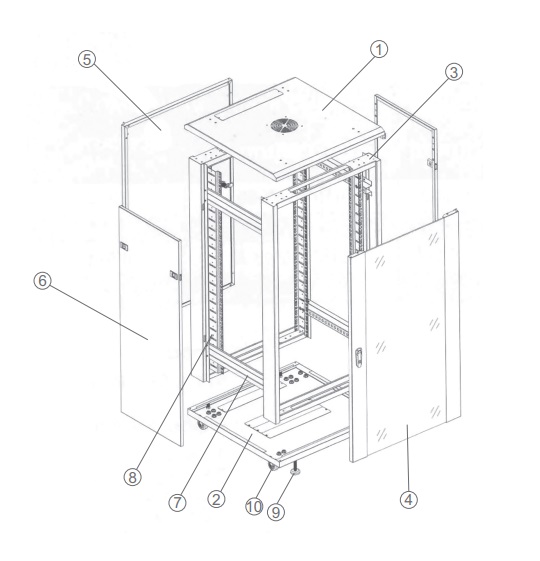

Componets of SDR Series Standing Network Rack
| S/N | Name | Quantity |
| 1 | Top cover | 1 |
| 2 | Bottom panel | 2 |
| 3 | Door frame | 2 |
| 4 | Front door | 1 |
| 5 | Rear door | 1 |
| 6 | Side panel | 2 |
| 7 | Horizontal bracket | 4 |
| 8 | Vertical rails | 4 |
| 9 | Levelling feet | 4 |
| 10 | Caster | 4 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|
More technical information and dimensions, to the top right corner of the page to download
