Small Swing Frame-19''Swing Frame
Note
■ Horizontal swing frame rails purchased separately;■ When used in part height configuration, matrix rail is required to mount horizontal swing frame rails.For matrix rail;
■ Matrix rail required to create sub-structure for mounting;
■ Equipment depth is subject to cabinet depth and mounting pan position;

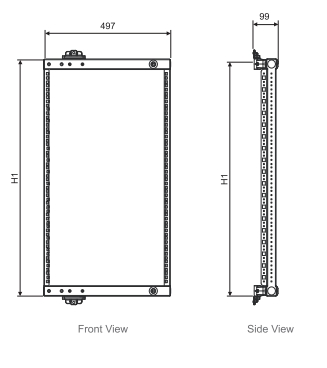

| Model | Dimension(mm) | To suit frame | |
| Height(H1) | Height (mm) | RU | |
| DJSF03RU/SML | 224 | Fits all | 3 |
| DJSF06RU/SML | 349 | Fits all | 6 |
| DJSF09RU/SML | 499 | Fits all | 9 |
| DJSF12RU/SML | 624 | Fits all | 12 |
| DJSF15RU/SML | 749 | Fits all | 15 |
| DJSF18RU/SML | 899 | Fits all | 18 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||

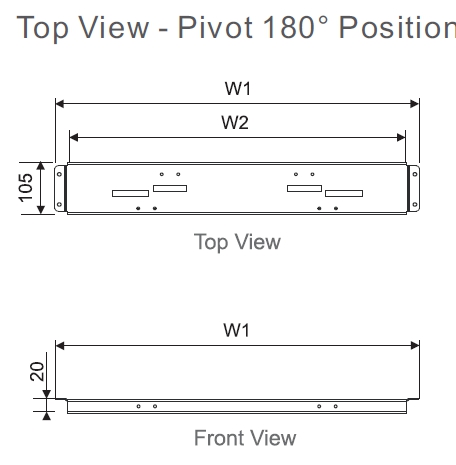

| Model | Dimension(mm) | To suit frame |
To Fit Frame Width(mm) |
| Width(W1) | Fixing Width(W2) | ||
| DJRF06/SML | 551 | 538 | 600 |
| DJRF08/SML | 751 | 738 | 800 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
More technical information and dimensions, to the top right corner of the page to download
