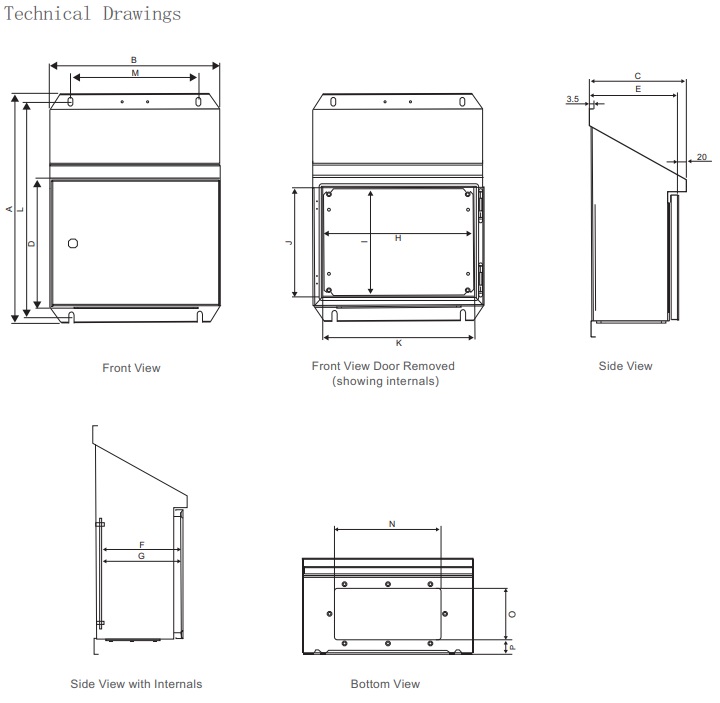

Technical Drawings

Download Center

Features
■ 30°sloping roof designed to prevent solids from building up on the surface
■ Easy installation with top and bottom mounting flanges
■ Fully welded construction
■ Flexible equipment mounting options including door rails and steel mounting pan
■ Specially designed gutter and extended roof
■ Foamed in place polyurethane gasket





Model Dimensions (mm) No of Locks
External Internal Mounting Pan Opening Size Fixing Centres Gland Plate
A B C D E F G H I J K L M N O P
DJ-EC/SS03021 507 200 175 300 155 130 124 250 150 255 155 476 100 175 70 30 1
DJ-EC/SS04031 607 300 175 400 155 130 124 350 250 355 255 576 200 175 70 30 1
DJ-EC/SS03042 535 400 225 300 205 180 174 250 350 255 355 505 300 250 120 30 1
DJ-EC/SS04042 636 400 225 400 205 180 174 350 350 355 355 605 300 250 120 30 1
DJ-EC/SS06042 836 400 225 600 205 180 174 550 350 555 355 805 300 250 120 30 1
DJ-EC/SS04062 636 600 225 400 205 180 174 350 550 355 555 605 500 440 120 30 1
DJ-EC/SS08062 1036 600 225 800 205 180 174 750 550 755 555 1005 500 440 120 30 2
DJ-EC/SS10062 1236 600 225 1000 205 180 174 950 550 955 555 1205 500 440 120 30 2
DJ-EC/SS04063 693 600 325 400 305 280 274 350 550 355 555 663 500 440 120 45 1
DJ-EC/SS06063 893 600 325 600 305 280 274 550 550 555 555 863 500 440 120 45 1
DJ-EC/SS08063 1093 600 325 800 305 280 274 750 550 755 555 1063 500 440 120 45 2
Customize more size to be request to the clients,
please email:happy@henghao.hk,
                     export@henghao.hk


More technical information and dimensions, to the top right corner of the page to download
