COVERS FOR HORIZONTAL ELBOWS 90
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion.
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.

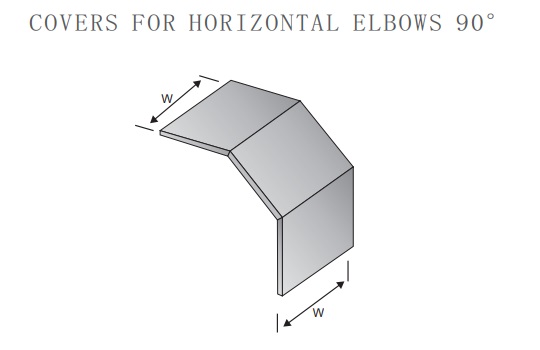

COVERS FOR HORIZONTAL ELBOWS
| TYPE |
( W ) mm |
( t ) mm |
( r ) mm |
| DCM-100EO | 108 | 1.2 | 250 |
| DCM-150EO | 158 | 1.2 | 250 |
| DCM-200EO | 208 | 1.2 | 250 |
| DCM-250EO | 258 | 1.2 | 250 |
| DCM-300EO | 309 | 1.2 | 250 |
| DCM-450EO | 459 | 1.5 | 250 |
| DCM-600EO | 610 | 1.5 | 250 |
| DCM-750EO | 759 | 2 | 250 |
| DCM-900EO | 909 | 2 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
| TYPE |
( W ) mm |
( t mm |
( r) mm |
| DC-75EO | 83 | 1.2 | 250 |
| DC-100EO | 107 | 1.2 | 250 |
| DC-150EO | 155 | 1.2 | 250 |
| DC-200EO | 203 | 1.2 | 250 |
| DC-250EO | 252 | 1.5 | 250 |
| DC-300EO | 302 | 1.5 | 250 |
| DC-400EO | 402 | 1.5 | 250 |
| DC-500EO | 502 | 1.5 | 250 |
| DC-600EO | 606 | 2 | 250 |
| DC-700EO | 705 | 2 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
More technical information and dimensions, to the top right corner of the page to download
