Location： Products > Cabinets and distribution components > COVERS

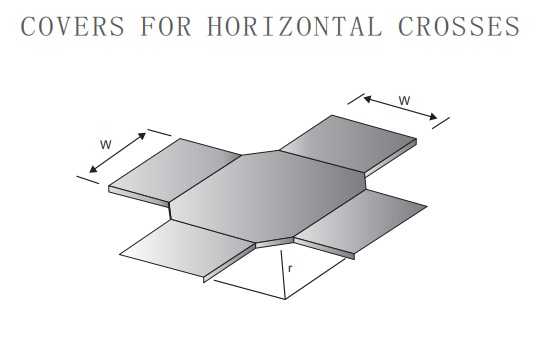

COVERS FOR HORIZONTAL CROSSES
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion.
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.
COVERS FOR HORIZONTAL CROSSE
| TYPE |
( W ) mm |
( t ) mm |
( r ) mm |
| DCM-100D | 108 | 1.2 | 250 |
| DCM-150D | 158 | 1.2 | 250 |
| DCM-200D | 208 | 1.2 | 250 |
| DCM-250D | 258 | 1.2 | 250 |
| DCM-300D | 309 | 1.2 | 250 |
| DCM-450D | 459 | 1.5 | 250 |
| DCM-600D | 610 | 1.5 | 250 |
| DCM-750D | 759 | 2 | 250 |
| DCM-900D | 909 | 2 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
| TYPE | ( W )mm |
( t ) mm |
r mm C |
r mm CH |
| DC-75D | 83 | 1.2 | 150 | 250 |
| DC-100D | 107 | 1.2 | 150 | 250 |
| DC-150D | 155 | 1.2 | 150 | 250 |
| DC-200D | 203 | 1.2 | 150 | 250 |
| DC-250D | 252 | 1.5 | 200 | 250 |
| DC-300D | 302 | 1.5 | 200 | 250 |
| DC-400D | 402 | 1.5 | 200 | 250 |
| DC-500D | 502 | 1.5 | 200 | 250 |
| DC-600D | 606 | 2 | 200 | 250 |
| DC-700D | 705 | 2 | 200 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
More technical information and dimensions, to the top right corner of the page to download
