COVERS FOR HORIZONTAL TEES
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion.
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.

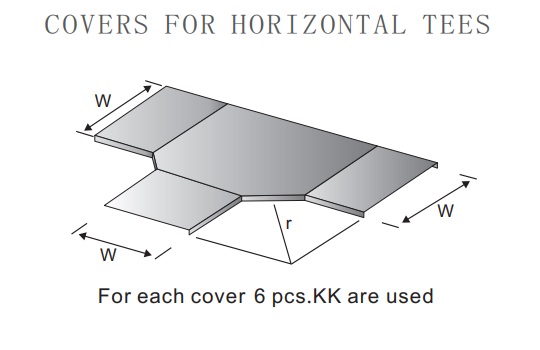

COVERS FOR HORIZONTAL TEES
| TYPE |
( W ) mm |
( t ) mm |
( r ) mm |
| DCM-100T | 108 | 1.2 | 250 |
| DCM-150T | 158 | 1.2 | 250 |
| DCM-200T | 208 | 1.2 | 250 |
| DCM-250T | 258 | 1.2 | 250 |
| DCM-300T | 309 | 1.2 | 250 |
| DCM-450T | 459 | 1.5 | 250 |
| DCM-600T | 610 | 1.5 | 250 |
| DCM-750T | 759 | 2 | 250 |
| DCM-900T | 909 | 2 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
| TYPE |
( W ) mm |
( t ) mm |
r mm C |
r mm CH |
| DC-75T | 83 | 1.2 | 150 | 250 |
| DC-100T | 107 | 1.2 | 150 | 250 |
| DC-150T | 155 | 1.2 | 150 | 250 |
| DC-200T | 203 | 1.2 | 150 | 250 |
| DC-250T | 252 | 1.5 | 200 | 250 |
| DC-300T | 302 | 1.5 | 200 | 250 |
| DC-400T | 402 | 1.5 | 200 | 250 |
| DC-500T | 502 | 1.5 | 200 | 250 |
| DC-600T | 606 | 2 | 200 | 250 |
| DC-700T | 705 | 2 | 200 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
More technical information and dimensions, to the top right corner of the page to download
