COVERS FOR HORIZONTAL ELBOWS 45
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion.
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.

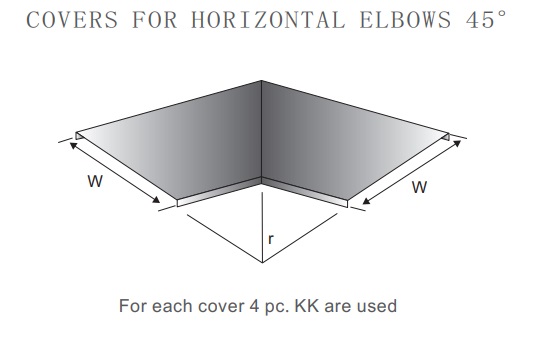

COVERS for horizontal elbows 45°
| TYPE |
( W) mm |
( t ) mm |
( r ) mm |
| DCM-100B | 108 | 1.2 | 250 |
| DCM-150B | 158 | 1.2 | 250 |
| DCM-200B | 208 | 1.2 | 250 |
| DCM-250B | 258 | 1.2 | 250 |
| DCM-300B | 309 | 1.2 | 250 |
| DCM-450B | 459 | 1.5 | 250 |
| DCM-600B | 610 | 1.5 | 250 |
| DCM-750B | 759 | 2 | 250 |
| DCM-900B | 909 | 2 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
| TYPE |
( W ) mm |
( t ) mm |
( r ) mm |
| DC-75B | 83 | 1.2 | 250 |
| DC-100B | 107 | 1.2 | 250 |
| DC-150B | 155 | 1.2 | 250 |
| DC-200B | 203 | 1.2 | 250 |
| DC-250B | 252 | 1.5 | 250 |
| DC-300B | 302 | 1.5 | 250 |
| DC-400B | 402 | 1.5 | 250 |
| DC-500B | 502 | 1.5 | 250 |
| DC-600B | 606 | 2 | 250 |
| DC-700B | 705 | 2 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
More technical information and dimensions, to the top right corner of the page to download
