COVERS FOR HORIZONTAL ELBOWS 90
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion.
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.

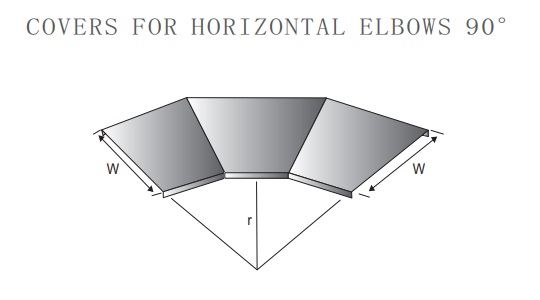

COVERS for horizontal elbows 90°
| TYPE |
W (mm) |
t (mm) |
r (mm) |
| DCM-100E | 108 | 1.2 | 250 |
| DCM-150E | 158 | 1.2 | 250 |
| DCM-200E | 208 | 1.2 | 250 |
| DCM-250E | 258 | 1.2 | 250 |
| DCM-300E | 309 | 1.2 | 250 |
| DCM-450E | 459 | 1.5 | 250 |
| DCM-600E | 610 | 1.5 | 250 |
| DCM-750E | 759 | 2 | 250 |
| DCM-900E | 909 | 2 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
| TYPE |
W (mm) |
t (mm) |
r (mm) C |
r （mm） CH |
| DC-75E | 83 | 1.2 | 150 | 250 |
| DC-100E | 107 | 1.2 | 150 | 250 |
| DC-150E | 155 | 1.2 | 150 | 250 |
| DC-200E | 203 | 1.2 | 150 | 250 |
| DC-250E | 252 | 1.5 | 200 | 250 |
| DC-300E | 302 | 1.5 | 200 | 250 |
| DC-400E | 402 | 1.5 | 200 | 250 |
| DC-500E | 502 | 1.5 | 200 | 250 |
| DC-600E | 606 | 2 | 200 | 250 |
| DC-700E | 705 | 2 | 200 | 250 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||
More technical information and dimensions, to the top right corner of the page to download
