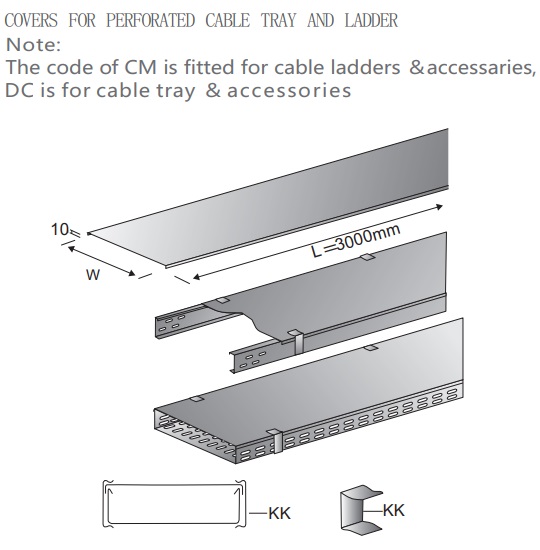

COVERS FOR PERFORATED CABLE TRAY AND LADDER
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion.
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.
COVERS for perforrated cable and ladder
| TYPE |
W (mm) |
t (mm) |
| DCM-100 | 108 | 1.2 |
| DCM-150 | 158 | 1.2 |
| DCM-200 | 208 | 1.2 |
| DCM-250 | 258 | 1.2 |
| DCM-300 | 309 | 1.2 |
| DCM-450 | 459 | 1.5 |
| DCM-600 | 610 | 1.5 |
| DCM-750 | 759 | 2 |
| DCM-900 | 909 | 2 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|
| TYPE |
W (mm) |
t (mm) |
| DC-75 | 83 | 1.2 |
| DC-100 | 107 | 1.2 |
| DC-150 | 155 | 1.2 |
| DC-200 | 203 | 1.2 |
| DC-250 | 252 | 1.5 |
| DC-300 | 302 | 1.5 |
| DC-400 | 402 | 1.5 |
| DC-500 | 502 | 1.5 |
| DC-600 | 606 | 2 |
| DC-700 | 705 | 2 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|
| TYPE | t (mm) | |
| KK-BC | 1.5 | |
| KK-D | 2 | |
| KK-E | 2 | |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|
More technical information and dimensions, to the top right corner of the page to download
