HORIZONTAL ELBOWS 45
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion.
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.

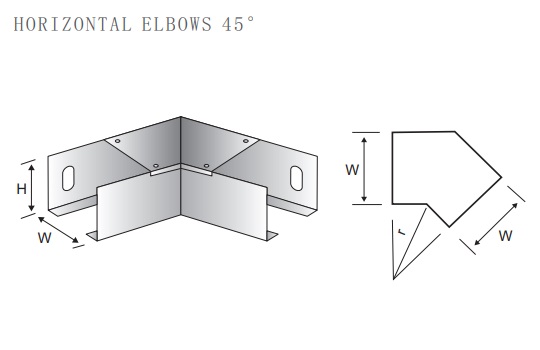

HORIZONTALELBOWS45°
| TYPE |
H x W (mm) |
t (mm) |
r (mm) |
| DR 50×50B | 50×50 | 0.8 | 100 |
| DR 50×75B | 50×75 | 0.8 | 100 |
| DR 50×100B | 50×100 | 0.8 | 100 |
| DR 50×150B | 50×150 | 0.8 | 100 |
| DR 75×75B | 75×75 | 0.8 | 100 |
| DR 75×100B | 75×100 | 0.8 | 100 |
| DR 75×150B | 75×150 | 0.8 | 100 |
| DR 100×100B | 100×100 | 0.8 | 100 |
| DR 100×150B | 100×150 | 1.2 | 100 |
| DR 150×150B | 150×150 | 1.2 | 100 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||
More technical information and dimensions, to the top right corner of the page to download
