H-TYPE VERTICAL INSIDE ELBOWS 90
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.

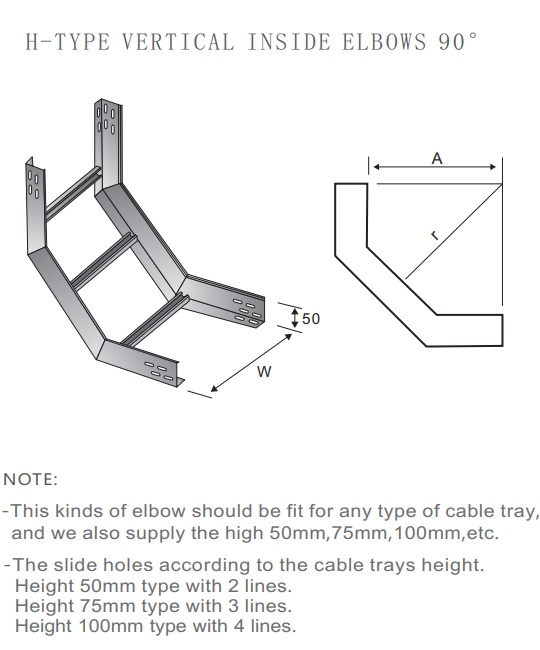

H-TYPE VERTICAL INSIDE ELBOWS 90 HEIGHT 50MM
| TYPE |
W (mm) |
t (mm) |
A (mm) |
r (mm) |
HOLE ON EACH SIDE |
| DIH90-50-100 | 100 | 1.2 | 250 | 250 | 2 |
| DIH90-50-150 | 150 | 1.2 | 250 | 250 | 2 |
| DIH90-50-200 | 200 | 1.5 | 250 | 250 | 2 |
| DIH90-50-250 | 250 | 1.5 | 250 | 250 | 2 |
| DIH90-50-300 | 300 | 1.5 | 250 | 250 | 2 |
| DIH90-50-450 | 450 | 1.5 | 250 | 250 | 2 |
| DIH90-50-600 | 600 | 2 | 250 | 250 | 2 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||||
More technical information and dimensions, to the top right corner of the page to download
