H-TYPE HORIZONTAL TEES
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.

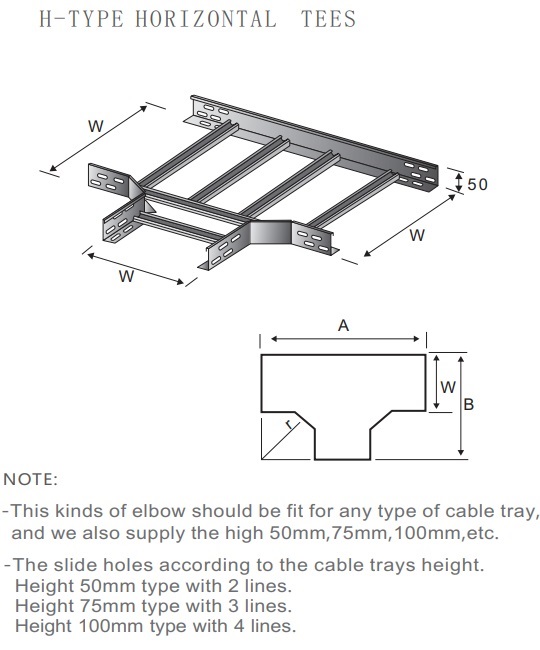

H- TYPE HORIZONTAL Heignt 50mm
| TYPE |
W (mm) |
B (mm) |
t (mm) |
A (mm) |
r (mm) |
HOLE ON EACH SIDE |
| DHT-50-100 | 100 | 350 | 1.2 | 650 | 250 | 2 |
| DHT-50-150 | 150 | 400 | 1.2 | 700 | 250 | 2 |
| DHT-50-200 | 200 | 450 | 1.5 | 750 | 250 | 2 |
| DHT-50-250 | 250 | 500 | 1.5 | 800 | 250 | 2 |
| DHT-50-300 | 300 | 550 | 1.5 | 800 | 250 | 2 |
| DHT-50-450 | 450 | 700 | 1.5 | 950 | 250 | 2 |
| DHT-50-600 | 600 | 850 | 2 | 1100 | 250 | 2 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
|||||

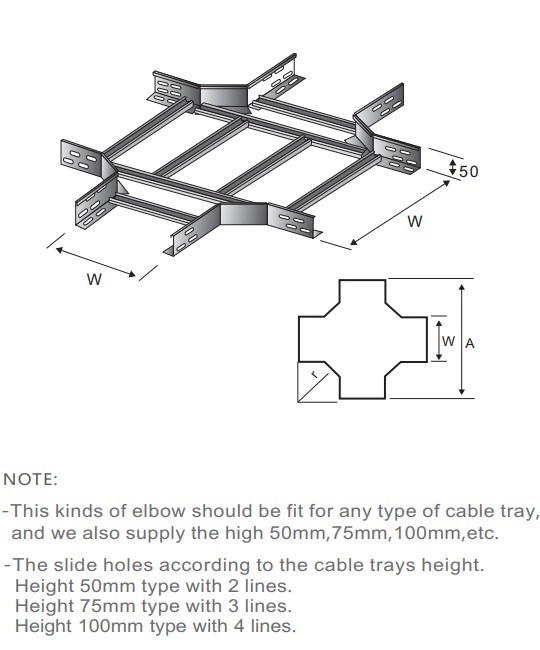

H- TYPE HORIZONTAL tees Heignt 50mm
| TYPE |
W (mm) |
t (mm) |
A (mm) |
r (mm) |
HOLE ON EACH SIDE |
| DHD-50-100 | 100 | 1.2 | 600 | 250 | 2 |
| DHD-50-150 | 150 | 1.2 | 650 | 250 | 2 |
| DHD-50-200 | 200 | 1.5 | 700 | 250 | 2 |
| DHD-50-250 | 250 | 1.5 | 750 | 250 | 2 |
| DHD-50-300 | 300 | 1.5 | 800 | 250 | 2 |
| DHD-50-450 | 450 | 1.5 | 950 | 250 | 2 |
| DHD-50-600 | 600 | 2 | 1100 | 250 | 2 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||||
More technical information and dimensions, to the top right corner of the page to download
