H-TYPE HORIZONTAL ELBOWS 45
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation.
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.

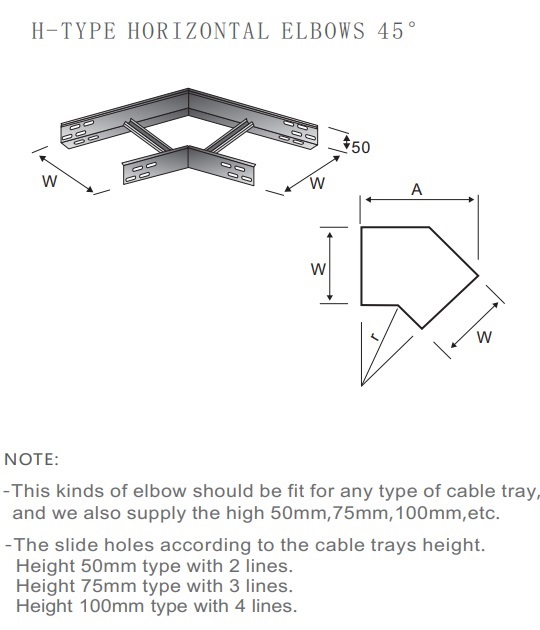

H- TYPE HORIZONTAL ELBOWS 45 Height 50mm
| TYPE |
W (mm) |
t (mm) |
A (mm) |
r (mm) |
HOLE ON EACH SIDE |
| DH45-50-100 | 100 | 1.2 | 326 | 250 | 2 |
| DH45-50-150 | 150 | 1.2 | 356 | 250 | 2 |
| DH45-50-200 | 200 | 1.5 | 391 | 250 | 2 |
| DH45-50-250 | 250 | 1.5 | 425 | 250 | 2 |
| DH45-50-300 | 300 | 1.5 | 462 | 250 | 2 |
| DH45-50-450 | 450 | 1.5 | 602 | 250 | 2 |
| DH45-50-600 | 600 | 2 | 674 | 250 | 2 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||||
More technical information and dimensions, to the top right corner of the page to download
