L-TYPE VERTICAL INSIDE ELBOW 90
Features
■ Energy saving, light weight, wide range of sizes.■ Excellent heat dispersion
■ Low cost, special model, convenient installation and ventilation.
■ Flexible, easy and fast installation
■ Various hardware accessories available to fix, support and install.
■ Easy for line check and cleaning, easy maintained.

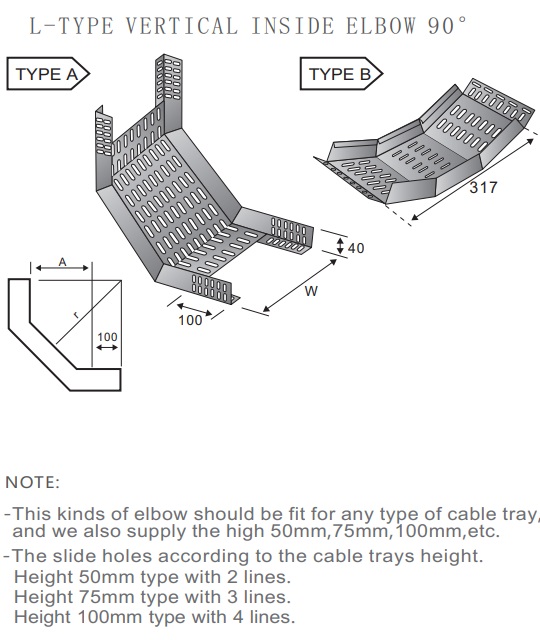

L-TYPE VERTICAL INSIDE ELBOW 90 HEIGHT 40MM
| TYPE |
W (mm) |
t (mm) |
A (mm) |
r (mm) |
HOLE ON EACH SIDE |
| DIL90-40-75 | 77 | 1.2 | 150 | 150 | 2 |
| DIL90-40-100 | 101 | 1.2 | 150 | 150 | 2 |
| DIL90-40-150 | 149 | 1.5 | 150 | 150 | 2 |
| DIL90-40-200 | 197 | 1.5 | 150 | 150 | 2 |
| DIL90-40-250 | 245 | 1.5 | 150 | 200 | 2 |
| DIL90-40-300 | 294 | 1.5 | 150 | 200 | 2 |
| DIL90-40-400 | 390 | 2 | 150 | 200 | 2 |
| DIL90-40-500 | 486 | 2 | 150 | 200 | 2 |
| DIL90-40-600 | 605 | 2 | 150 | 200 | 2 |
| DIL90-40-700 | 705 | 2 | 150 | 200 | 2 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||||
More technical information and dimensions, to the top right corner of the page to download
