PERFORATED CABLE TRAY HEIGHT:40MM

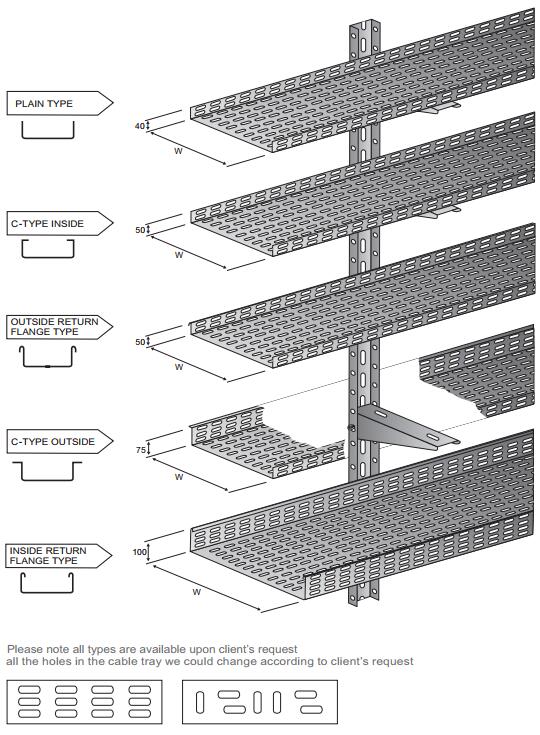

The details for all types of cable tray

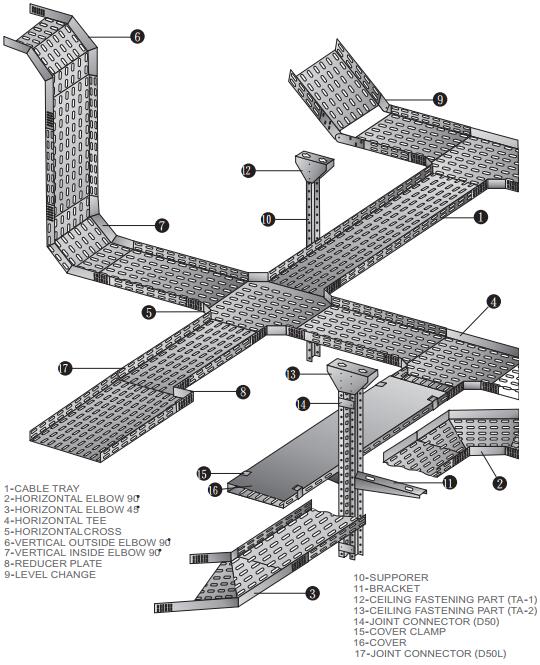

■ -The perforated cable tray is simple to install, light but strong enough for most requirement.■ -All range of accessories are available.
■ Surface finish:
■ Pre Galvanized Steel
■ Hot Dip Galvanized after manufactured
■ Powder coated
■ 304/306 stainless steel
PERFORATED CABLE TRAY HEIGHT:40MM
| TYPE |
H (mm) |
W (mm) |
THICKNESS (mm) |
LENGTH (mm) |
HOLE ON EACH SIDE | ||
| D40×75 | 40 | 75 | 0.75 | 1 | 1.2 | 3000 | 2 |
| D40×100 | 40 | 99 | 1 | 1.2 | 1.5 | 3000 | 2 |
| D40×150 | 40 | 147 | 1 | 1.2 | 1.5 | 3000 | 2 |
| D40×200 | 40 | 195 | 1 | 1.2 | 1.5 | 3000 | 2 |
| D40×250 | 40 | 243 | 1 | 1.2 | 1.5 | 3000 | 2 |
| D40×300 | 40 | 292 | 1 | 1.2 | 1.5 | 3000 | 2 |
| D40×400 | 40 | 388 | 1.2 | 1.5 | 2 | 3000 | 2 |
| D40×500 | 40 | 484 | 1.2 | 1.5 | 2 | 3000 | 2 |
| D40×600 | 40 | 600 | 1.2 | 1.5 | 2 | 3000 | 2 |
| D40×700 | 40 | 700 | 1.2 | 1.5 | 2 | 3000 | 2 |
| Customize |
more size to be request to the clients, please email:happy@henghao.hk, export@henghao.hk |
||||||
More technical information and dimensions, to the top right corner of the page to download
